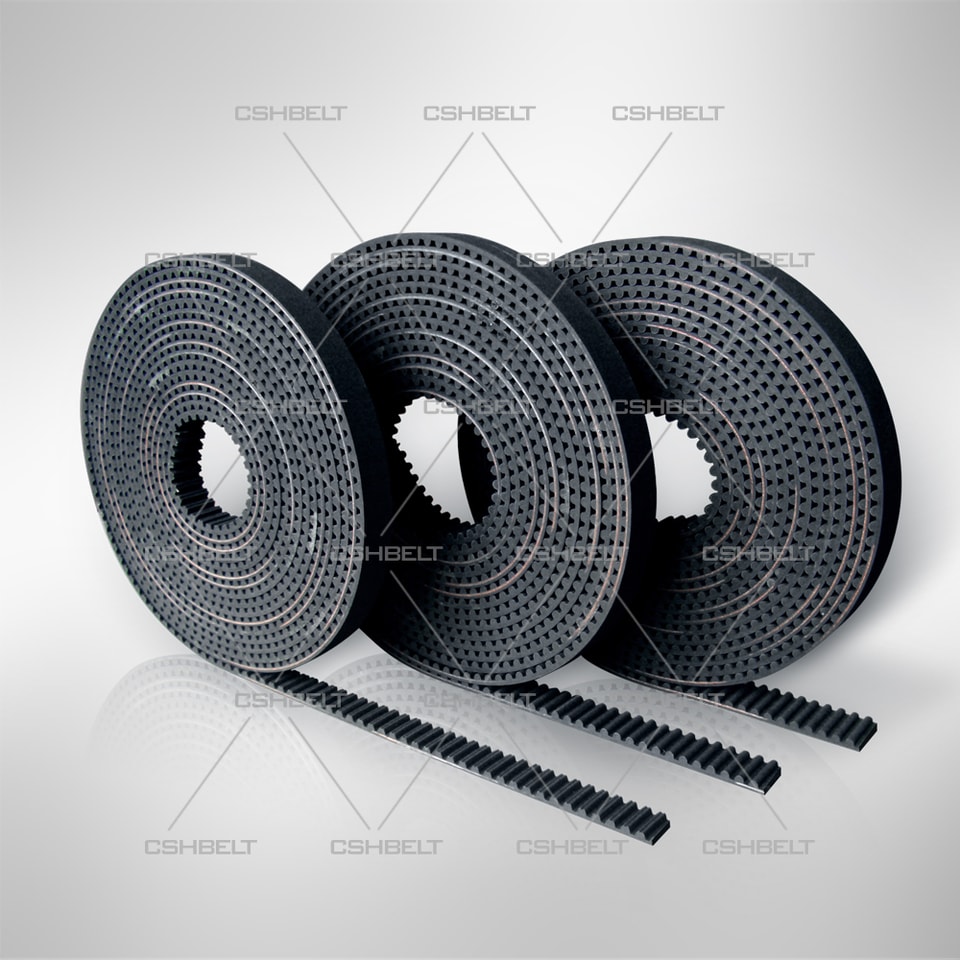

Rubber Open End Timing Belts

Rubber open end timing belts are rubber based timing belts manufactured with high quality materials and unique fabrication technology.

Especially suitable for linear motion systems,typically applies in: Automatic doors, CNC Machine tools, Printers etc.

High load capacity, low noise and no maintenance make this belt a perfect performance in linear motion systems.

CSHBELT rubber open end timing belts produced in spiral cut.

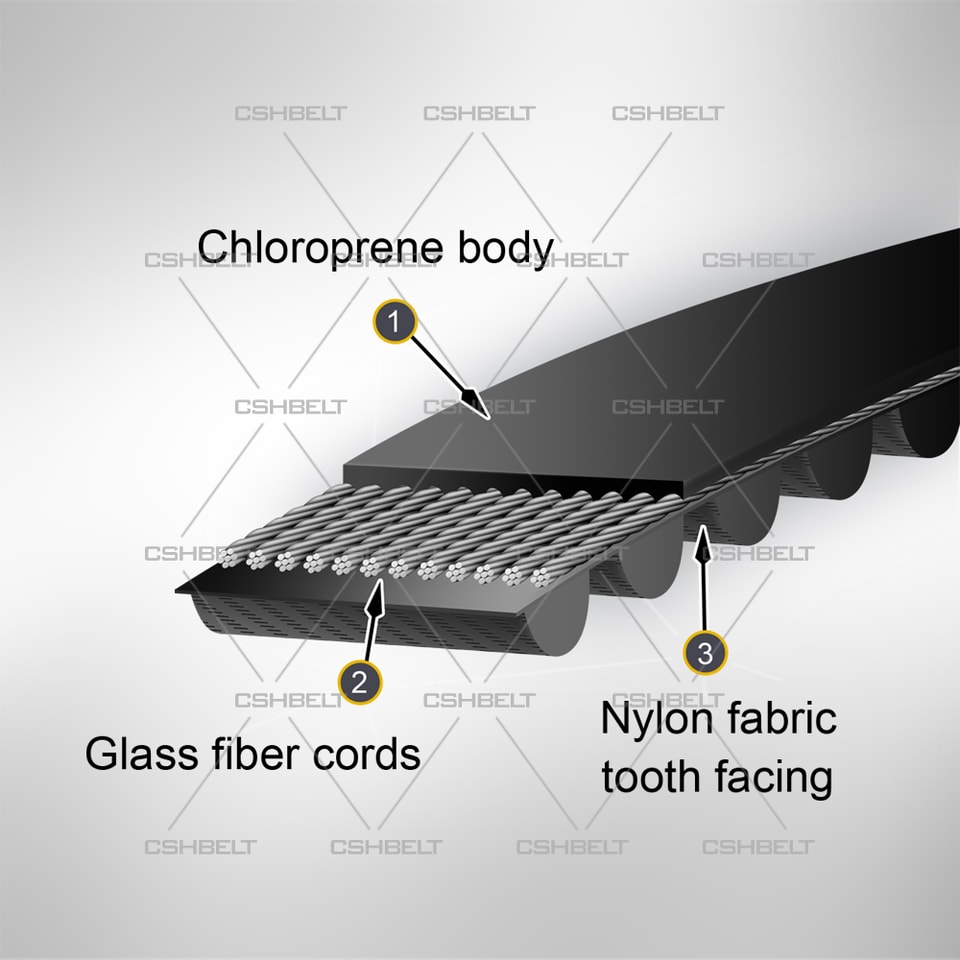

* Chloroprene body provides protection against oil, grease, heat and aging.

* Glass Fiber cords provides high strength, good flexing performance, and low elongation.

* Nylon fabric tooth facing provides resistance to abrasion and tooth shear.

MXL XL L H
Width Roll length(m) Width Roll length(m) Width Roll length(m) Width Roll length(m)
(inch) (inch) (inch) (inch)
025 80*2 025 80*2 037 135 050 140
031 135 031 130 050 100 062 115
037 110 037 105 062 80 075 95
050 80 050 80 075 65 100 70








T2.5 T5 T10 RPP8M
Width Roll length(m) Width Roll length(m) Width Roll length(m) Width Roll length(m)
(mm) (mm) (mm) (mm)
6 55 10 110 10 80*2 10 85
9 39 15 70 15 105 12 70
12 27 20 55 20 80 15 55








HTD2M HTD3M HTD5M HTD8M
Width Roll length(m) Width Roll length(m) Width Roll length(m) Width Roll length(m)
(mm) (mm) (mm) (mm)
6 105*2 6 115 9 135 10 75*2
9 140 9 75 10 120 12 130
10 125 10 70 12 100 15 105
12 105 12 55 15 80 20 75
15 84 15 45 20 60 25 60
20 63 20 35 25 45 30 50








S2M S3M S5M S8M
Width Roll length(m) Width Roll length(m) Width Roll length(m) Width Roll length(m)
(mm) (mm) (mm) (mm)
6 110*2 6 120 9 135 10 75*2
9 75*2 9 80 10 120 12 130
10 135 10 70 12 100 15 105
12 110 12 60 15 80 20 75
15 90 15 48 20 60 25 60
20 65 20 35 25 45 30 50
